This product is a new type of waterproof structure LED DOT, which is developed by many of our company’s advanced designing concepts:
1. Led dot series is a new type of decorative lights, a supplement to the linear light source and general lighting, its beautiful appearance and superior protection performance make it one of the most widely used LED lighting products. Protection grade reaches IP65.
2. High strength engineering PC cover with optical effect and die-casting aluminum base are adopted by the lamps, which is integrated in design, beautiful and durable.
3. It has spraying treatment with its surface, corrosion and oxidation resistance, high transparency, good in punching press and anti ultraviolet features etc.
4. 256 gray levels, 16,700,000 kinds of R/G/B synthetic origin color images and color synchronization changes are achieved.

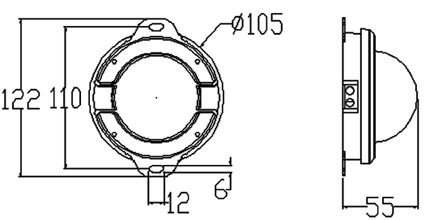

Material | Die Casting Aluminum+PC Cover | Size | Ф105*55mm |
CCT | RGB/Single Color (optional) | Brand of Chip | Taiwan Epistar/America Cree (optional) |
LED Spec. | SMD5050/ 12PCS | Beam Angle | 120° |
Input Voltage | DC24V | Power | 3W |
IP Class | IP67 | Insulation Class | □Ⅰ □Ⅱ ■Ⅲ |
Control Mode | ■Internal Control ■External Control ■DMX512 □Uncontrollable | Adjustable Angle | ■Non-adjustable □Adjustable |
Connection | Male &Female Connector/200MM | Power Supply Installation | ■Searated □Built-in □External |
LM | 80LM/W | Lamp Installation | ■Surface Mounted □Underground □Embedded |
Working Temperature | -30℃~+55℃ | Working Humidity | 0 - 90%RH |
Working Life | >30000 hrs | Weight(KG/PCS) | 0.23 |
LXY-ADGY-15003
