It is widely used in various places, such as riverside sight, museums, galleries, leisure squares, bridges, etc., to enhance visual effect.
1.It is a integration structure with heat dissipation and waterproof function. It is a novel structure without epoxy sealing. Compared to similar products on the market, its heat conductivity can reach 60% to 80%, which fulfills the heat dissipation requirement, lowers Lumen maintenance, and prolongs working life.
2.For the full-closed waterproof design, special silicone with high flexibility and imported rubber sealing ring with aging resistance are used in production. The waterproof class is IP67.
3.Premium aluminum profile(6063) is used in production. And anode oxidation treatment and impact-resistant tempered glass are also applied to keep a lasting bright and new lamp surface.

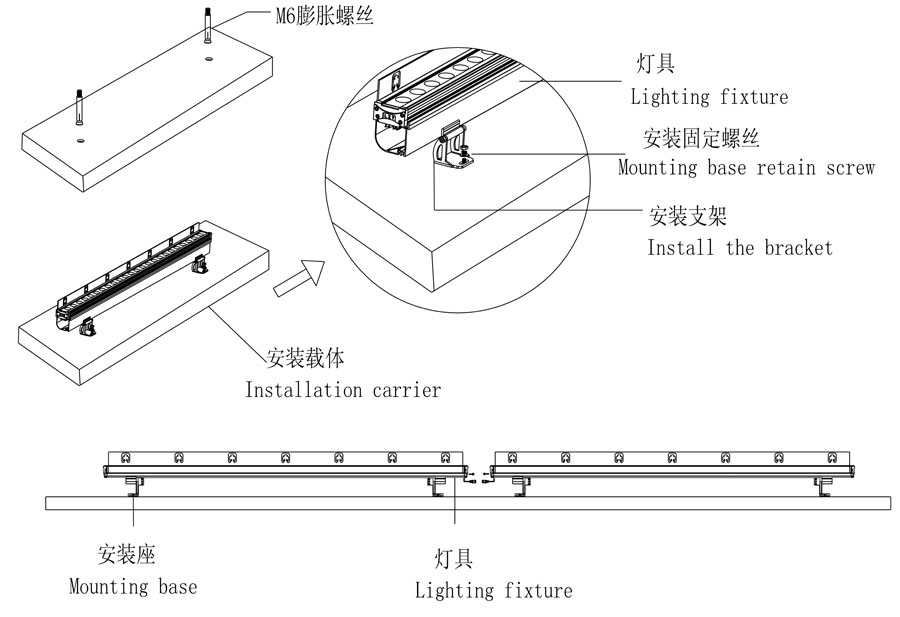

4.Based on site conditions, the flexible and adjustable bracket makes the beam angle more accurate and brings a more extraordinary effect.
5.According to refraction principle, professional optical design combined with high-performance optical lens makes light transmittance up to 90%. And various beam angles can be customized, creating an effect featured with high brightness and color fidelity.

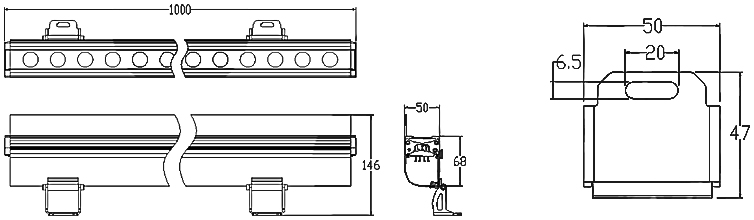

| Material | Aluminum Profile（6063）+Tempered Glass+Aluminum Bracket | Size | 50*68*1000MM(Optional) |
| CCT | Single Color/RGB(Optional) | Brand of Chip | Taiwan Epistar/America Cree (optional) |
| LED Spec. | High-Power 18/24/36PCS(Optional) | Beam Angle | 10*65° |
| Input Voltage | DC24V/AC220V（Optional） | Powr | 18W/24W/36W(Optional) |
| IP Class | IP67 | Insulation Class | ■Ⅰ □Ⅱ □Ⅲ |
| Control Mode | ■Internal Control ■External Control ■DMX512 □Uncontrollable | Adjustable Angle | □Non-adjustable ■Adjustable |
| Connection | Two Cable/ 150MM | Power Supply Installation | □Separated ■Built-in □External |
| LM | 80LM/W | Lamp Installation | ■Surface-mounted □Underground □Embedded |
| Working Temperature | -30℃～+55℃ | Working Humidity | 0 - 90%RH |
| Working Life | ＞30000hrs | Weight（KG/PCS） | 3.12 |
